Slide Automatic Layer Thickness Measurement Request a Quote

Features:

  •  Automatic material detection (steel/aluminum);
  • Automatic calibration;
  •  Automatic measurement;
  • Multiple layer support;
  • Adjustable offset, pitch and number of measurements;
  • Storage of user templates;

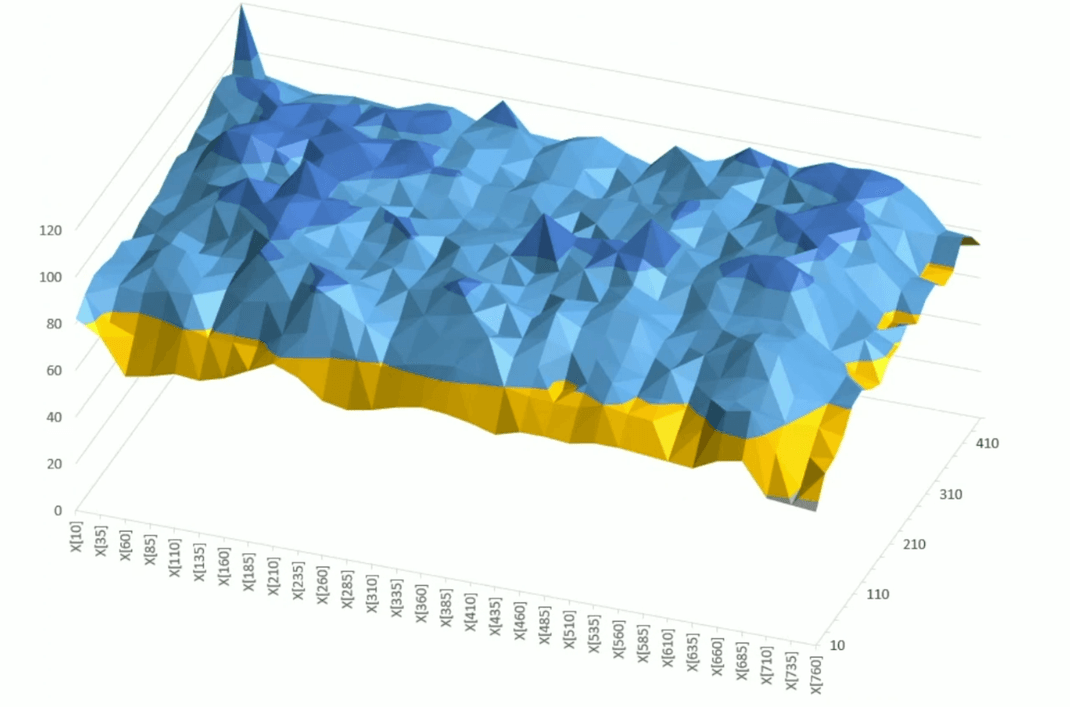

  • Layer topology visualization;
  • ISO 2808
  • Up to 800x500mm plate size (or custom size).
Request a Quote

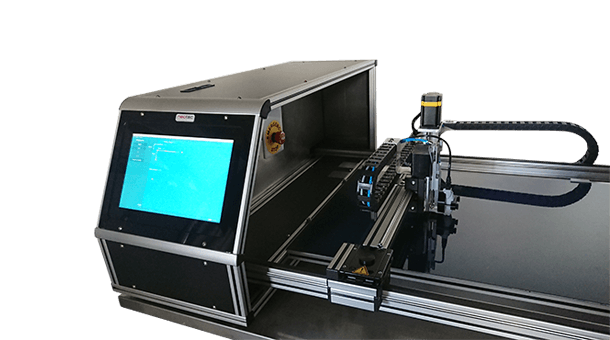

Slide Slide Optional plate
rack cabinet
-10" Touchscreen
-Stand alone operation
-Easy to operate
-Excell
-Automatic calibration
-Automatic ferro / non-ferro detection
-High reproducibility
Scalable design
(to required panel size)
Layer thickness visualization in µm

Slide Slide Slide Slide

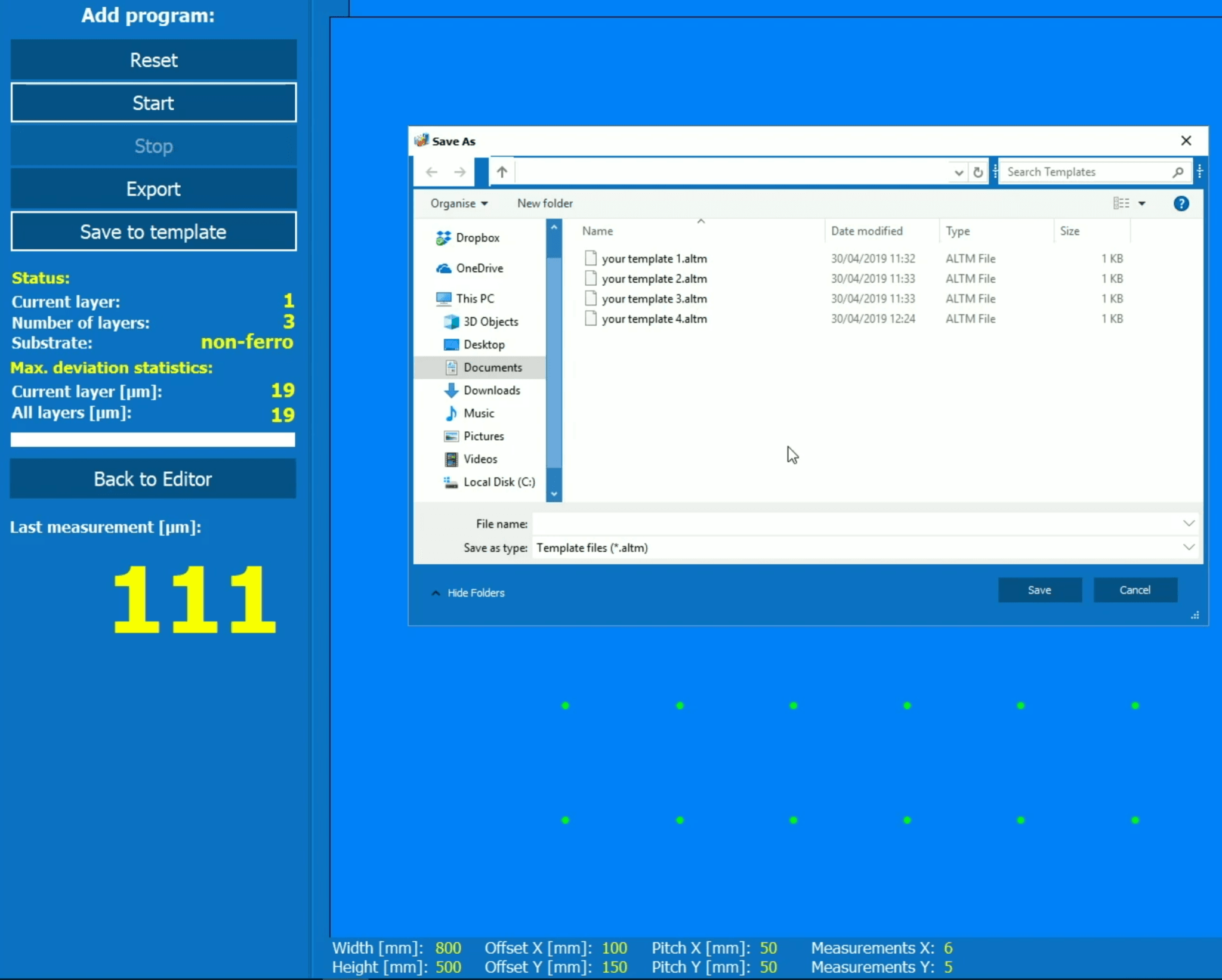

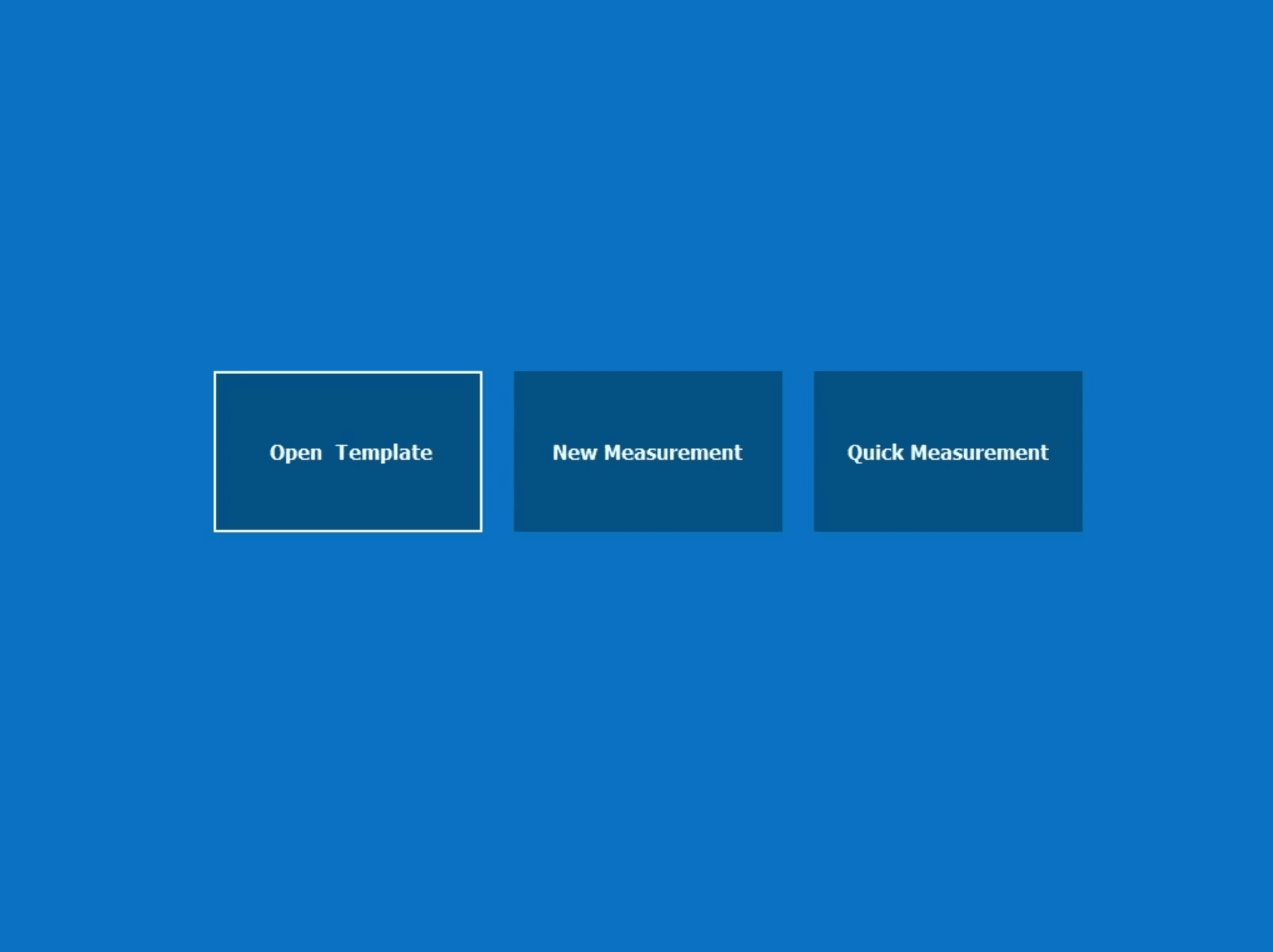

Slide Easy storage and / or retrieval of previous measurements. Slide In order to work quickly, there are 3 modes in the software:
-Open templates.
-A single measurement.
-New grid or line measurement.

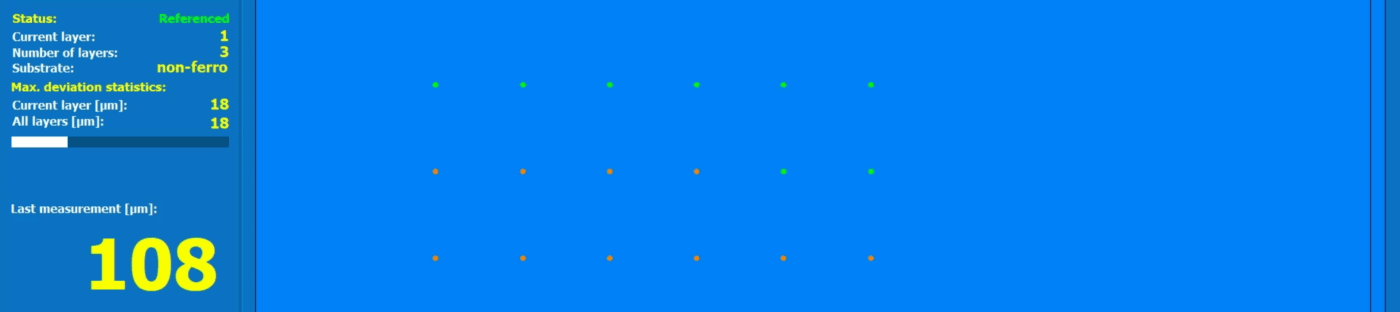

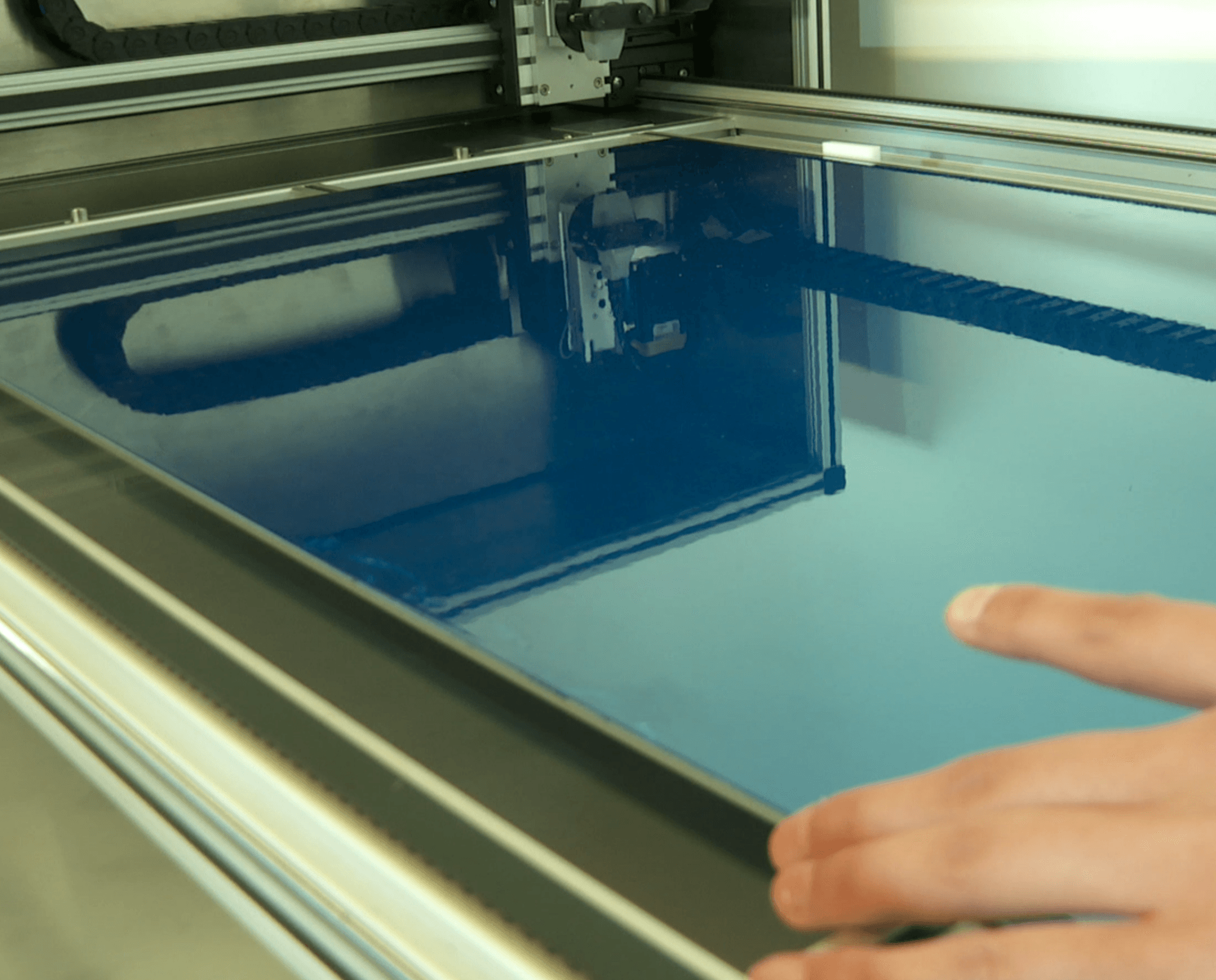

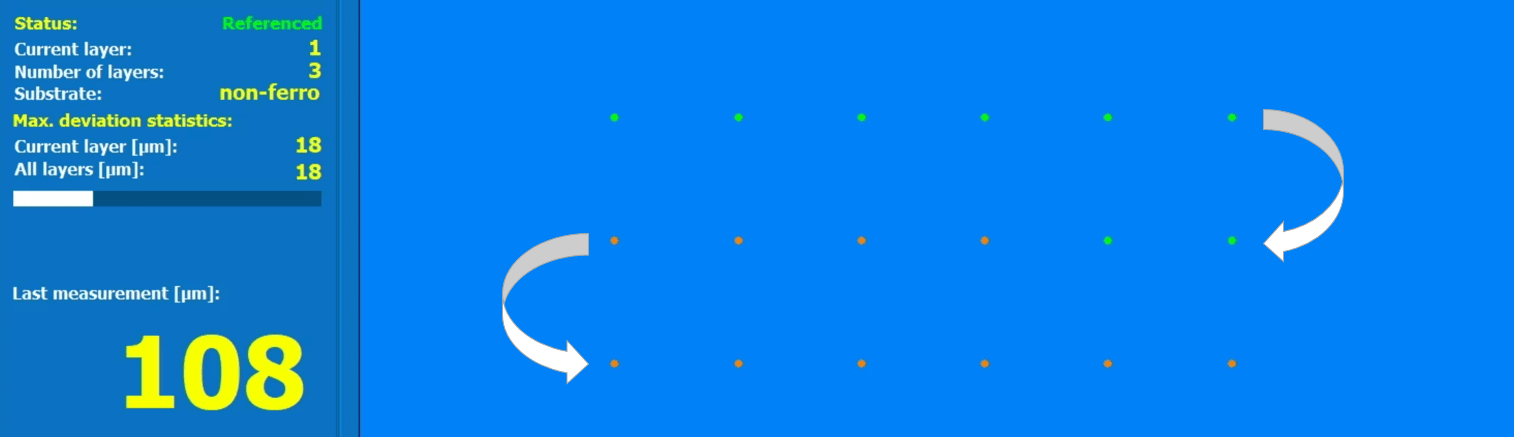

Slide Simple and fast positioning of the panels. Slide Easy to operate with touchscreen and embedded windows® PC. Slide Direct display of the measurement results and visual progress indication. Slide Intuitive step-by-step operation.

Simple and fully automated:

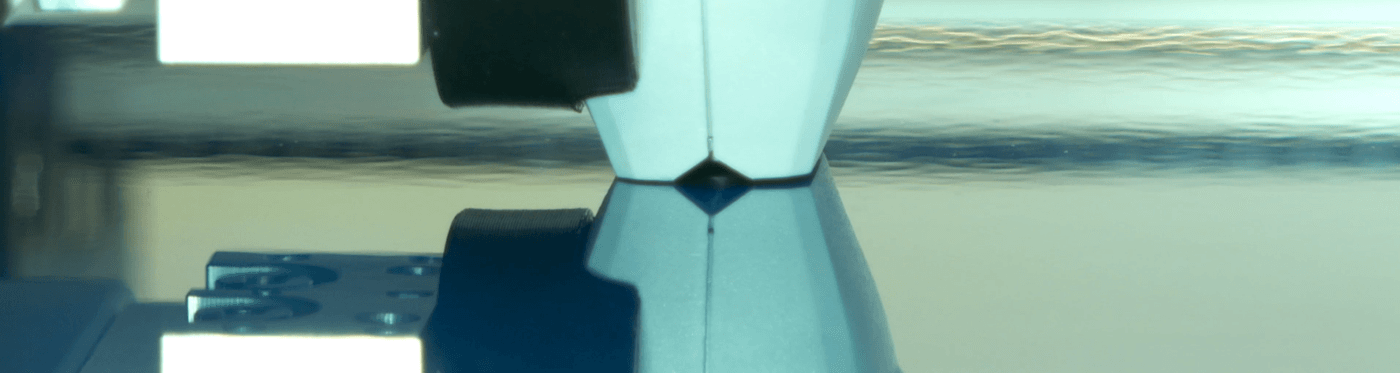

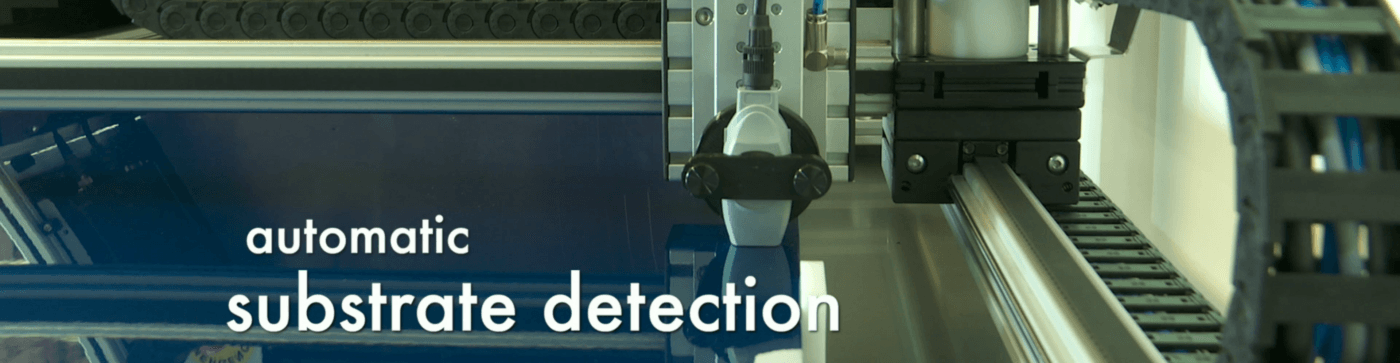

This device can measure thickness variations for big plates fully automatically. The device has a sensor for panels with a metal substrates. Steel or aluminum substrates are automatically detected. The machine is user friendly because of its simple operation. We can adapt the measurement type or the size of the machine upon request so that it aligns with your application.

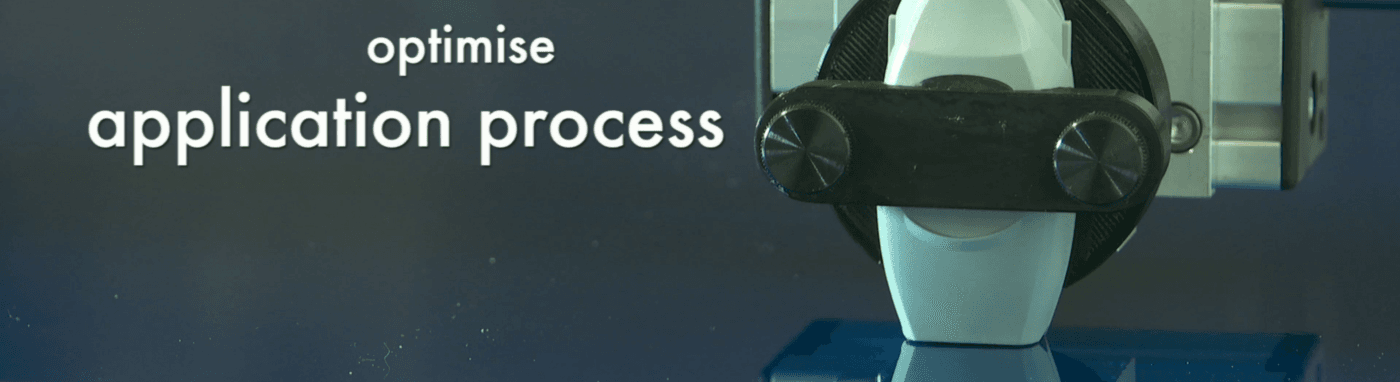

Optimize your application process:

With the software, the coordinates to be measured can be easily set with clear visualisation of the set parameters. If more than 1 layer should be measured, the number of layers should be set.
Once the parameters are set, the machine can measure fully automatically.
If the set values will be used more often, they can be saved as a template, which can be opened again anytime. During the measurement the software shows immediately the measurement value in micrometers. Measuring the coating distribution can help to optimise the application (spraying) process thus preventing irregular patches. -We can adapt the measurement type or the size of the machine upon request so that it aligns with your application. Measurements can be easily exported.
